Liquid receivers – Horizontal

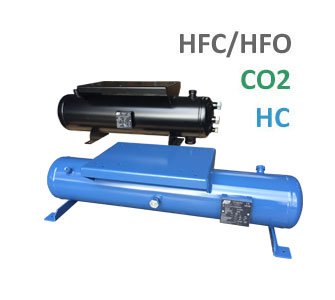

Our standard liquid receivers are suitable for HFC / HFO refrigerants * such as R134a, R407F, R449A etc. Liquid receivers with “-E” addition have a “dome”. By making the opening of the standpipe below the level of the receiver bottom, optimum use is made of its contents.

* Various different versions on request. Call our sales department for all the possibilities such as liquid tanks for propane (R290) and CO2 (R744)

Choose the type(s) you need and add to RFQ.
We will quote you a price within one working day.

  • Returning customers can login to see gross prices.
  • See table below in tabs for specifications of all types.
SKU: N/A Category: Tags: , , , , ,

Description

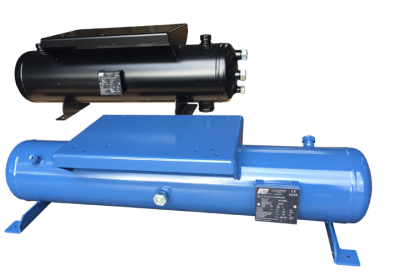

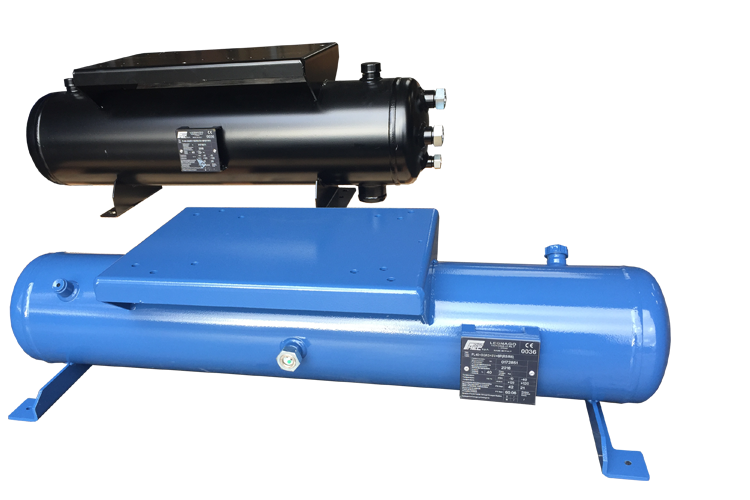

The horizontal liquid tanks without base plate are on stock from 24 to 500 liters.

We also offer horizontal liquid receivers with a universal base plate. The horizontal liquid receivers with base plate are on stock from 19 to 150 liters. The horizontal liquid receivers are available up to a capacity of 2000 liters.

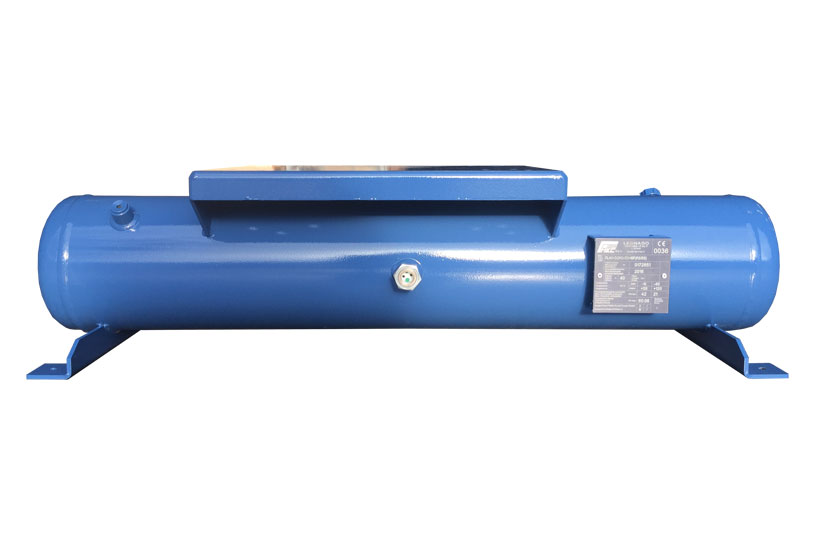

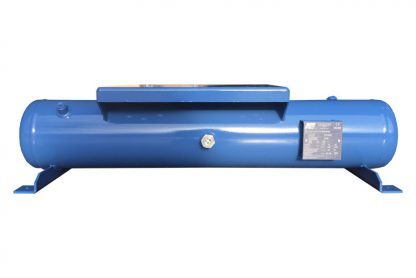

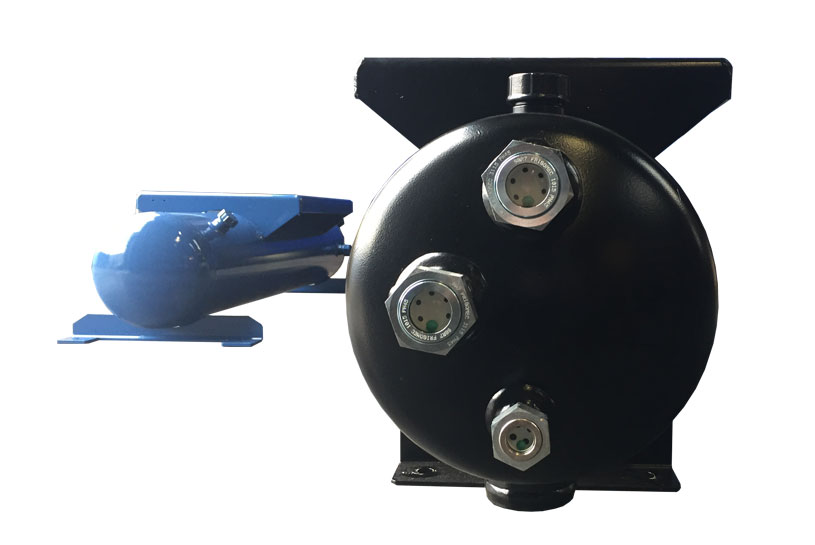

Depending on the size, all liquid receivers are equipped with 1/2 “NPT connection (for a change-over valve and safety devices),  sight glasses, inlet and outlet with connections for rotor lock valves, flange valves or welding/solder connection.

Please see next tab for all types and specifications
